How to Measure a Door for Replacement: A Simple Guide
Replacing a door may seem like a big task, but it starts with something very simple: measuring. Learning how to measure a door for replacement is the most important step in making sure your new door fits just right. Whether you’re replacing a door inside your home or the one at the front, getting the size correct makes the job faster, easier, and cleaner. At DNG General Service, we help homeowners make door replacements smooth and stress-free. This guide will show you how to measure like a pro, even if it’s your first time.
Why Measuring Your Door the Right Way Matters for Any Home Project
Every door has a job. It helps with privacy, safety, and keeping rooms comfortable. But if a door is too tight or loose, it can stick, swing open on its own, or let in cold air. Measuring the door properly means your new door will fit just right. This saves you time, avoids mistakes, and helps you choose the correct type of door and frame. A small measuring error could mean you buy the wrong size, and that means extra costs and delays.
When Should You Replace Your Door? Signs It’s Time for a New Fit
Sometimes a door shows its time to go. Here are a few signs:
- It sticks or doesn’t close all the way
- There are gaps between the door and the frame.
. - You feel drafts or hear outside noise too easily.
- It looks old or damaged
- The hardware is loose or broken
These signs mean it’s time to measure for a new door. If you notice these issues, getting the size right will help fix both the look and feel of your door.
Understanding the Different Parts of a Door and Frame
Before you start measuring, it helps to know the basic parts of a door:
- Door slab: the flat panel that swings open
- Jamb: the inside of the frame where the door rests
- Threshold: the bottom part you step over
- Hinge side: where the door is attached
- Strike side: where the latch connects
- Trim: decorative edge around the door
Knowing these terms will make the measuring process easier. You’ll also learn what parts stay and what gets replaced.
Tools You’ll Need to Accurately Measure a Door
You don’t need fancy tools to measure a door. Here’s what you should have:
- Tape measure (a sturdy one)
- Pencil or marker
- Paper for notes
- Level (to check if frames are straight)
- Flashlight (if you’re working in a dark corner)
With these tools, you’re ready to get accurate door measurements that will help you pick the perfect fit.

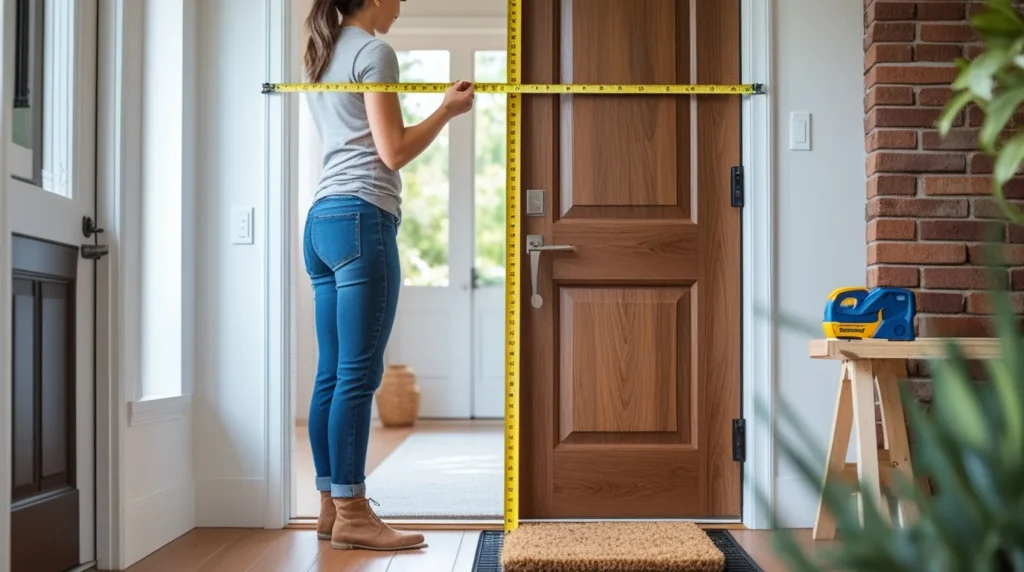

How to Measure a Door Size: Width, Height, and Thickness Explained
Start with the slab, or the door panel. Measure the width from one side to the other. Place your tape across the middle for the most accurate number. Do the same from top to bottom for the height. Then, check the thickness. Standard doors are usually 1 3/8 to 1 3/4 inches thick. Write down each number carefully.
Example:
- Width: 32 inches
- Height: 80 inches
- Thickness: 1 3/8 inches
Always round up to the nearest inch if you’re unsure. This makes sure the door fits or can be trimmed slightly if needed.

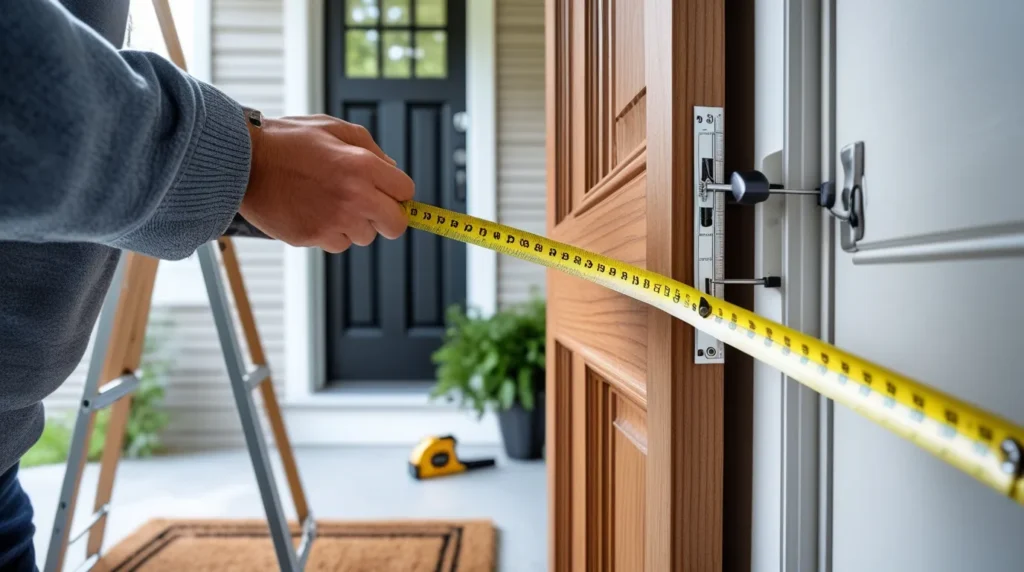

Measuring the Door Frame: Why It’s Just as Important
Next, measure the frame. The frame is the full opening that the door sits in. Check the jamb width by opening the door and measuring the space from the inside trim on one side to the other. You may also hear this called the “rough opening.”
Tips:
- Take three measurements for width (top, middle, bottom)
- Take three for height (left, center, right)
- Use the smallest number for your final size.
This gives you the most accurate measurements and helps avoid errors caused by a crooked wall or floor.
How to Measure for a New Prehung Door or Slab Door
You can choose either a slab door or a prehung door. A slab is just the door itself, while a prehung door comes with the frame attached. If your old frame is in bad shape, go with prehung.
For a prehung door:
- Measure the width and height of the entire frame
- Include the jamb width (thickness of the wall)
For a slab door:
- Measure the old door’s width, height, and thickness
- Check where the hinges and knob holes are located.
Getting the right type depends on what needs replacing.
Tips for Measuring Interior Doors vs. Exterior Doors
Interior doors are lighter and usually not exposed to the weather. Exterior doors need to seal tightly and block drafts. Here are tips for each:
Interior:
- Focus on the door slab size
- Trim can be reused if it’s in good shape.
Exterior:
- Always measure the threshold area
- Check the door swing direction (inward or outward)
- Add weather stripping if needed.
Exterior doors must be measured with extra care, especially in colder places like Aurora, CO.
Avoiding Common Mistakes: What First-Time DIYers Should Watch For
If you’re doing this for the first time, here’s what to avoid:
- Only measuring the door, not the frame
- Forgetting to check if the frame is level
- Not noting the hinge locations
- Assuming all doors are the same size
- Measuring from the trim instead of the door edge
One small mistake can cause big issues. Take your time and double-check your numbers. At DNG General Service, we’ve seen many people learn this the hard way.
Taking Accurate Door Measurements in Aurora, CO Homes
Homes in Aurora can have older frames or unique door sizes. The weather also plays a role. Cold, snowy winters mean exterior doors must fit tightly to keep out drafts. When measuring for exterior door replacement Aurora, CO, make sure to include space for insulation or weather seals. If your home has settled or shifted over the years, the frame may not be perfectly straight—a level helps catch this.
What to Do After You Measure: Choosing the Right Replacement Door
Once you’ve got your measurements:
- Decide if you want a prehung or slab door
- Match the hinge side and knob placement.
- Choose a style (panel, flush, French, etc.)
- Pick a material (wood, fiberglass, metal)
You can also visit a home improvement store or website with your notes. Knowing your measurements makes the shopping process easier and faster.
Need help choosing the right fit or style? DNG General Service is here to make your next step smooth and easy. Our team has the tools and knowledge to get it right the first time.
